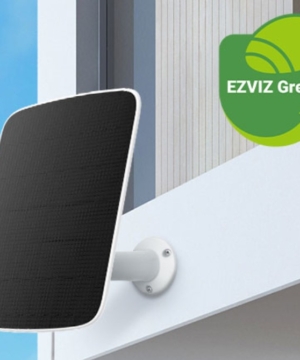

Ezviz CS-CMT-SOLAR-PANEL-E

Solar Panel EB8 CS-CMT-SOLAR-PANEL-E

Deskripsi Produk
Model CS-CMT-Solar Panel-E

Performance Parameter*
*Data from EZVIZ Lab’s test results under standard testing conditions (STC): 1000W/m2, AM1.5,25?, (38000-40000 LUX)
Power Voltage 6V ± 5%
Max. Power current 1030 mA ± 5%
Max. Power 6.18 W
Transformation efficiency 21.6%
Operation Temperature
-20°C – 60°C (-4°F – 140°F); Humidity 90% or less (non-condensing)

(The working environment temperature range for battery camera charging should be maintained at 0-45°C )
IP Grade IP65
Mechanical Data
Manufacturing Process Monocrystalline solar cells, PET laminated wood
Product Dimensions 283.7 × 185.7 × 2.4 mm (11.17 × 7.31 × 0.09 inch)
Packaging Dimensions 300 × 202.5 × 78 mm (11.81 × 7.97 × 3.07 inch)
Net Weight 484g (17.07 oz)
With Package 854g (30.12 oz)
In the box
In the box – EZVIZ Solar Panel-E
– Adjustable Mounting Bracket
– Screw Kit
– Drill Template
– Quick Start Guide
