Ezviz CS-H4

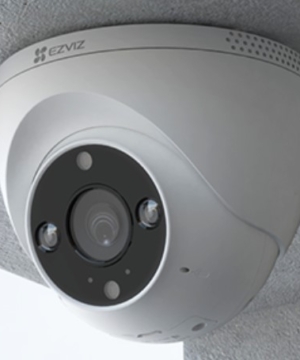

Smart Wi-Fi Camera CS-H4(3MP)

Deskripsi Produk
Model CS-H4-R201-1H3WKFL
Camera

• Image sensor 1/2.7” Progressive Scan CMOS
• Shutter Speed Self-adaptive shutter
• Lens 2.8 mm, viewing angle: 106° (Horizontal), 122° (Diagonal) 4 mm, viewing angle: 86° (Horizontal), 102° (Diagonal) 6 mm, viewing angle: 52° (Horizontal), 62° (Diagonal)DNR3D DNRLens Mount M12 Day & Night IR-cut filter with auto-switching WDR WDRBLC
• Supports Night Vision Up to 98 ft / 30 m

Video & Audio

• Max. Resolution 2304 × 1296
• Frame RateMax: 25fps; Self-Adaptive during network transmission
• Audio Bit Rate Self-Adaptive Max. Bitrate 3Mbps
• Video Compression H.265 / H.264
• Video Bit RateUltra-HD; HD; Standard. Adaptive bit rate.

Network

• Wi-Fi Standard IEEE 802.11b, 802.11g, 802.11n
• Frequency Range2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Support 20MHz
• Security 64/128-bit WEP, WPA/WPA2, Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
• Wi-Fi PairingAP pairing
• Protocol EZVIZ Cloud Proprietary
• Protocol Interface Protocol EZVIZ Cloud Proprietary
• Protocol Wired Network RJ45 × 1(10M/100M Adaptive Ethernet Port)
• Functions Smart Alarm Motion Detection, AI-Powered Human Shape Detection / Vehicle Shape Detection Customized Alert Area
• Supports Two-way Talk
• Supports General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage

• Local Storage Supports microSD card storage (up to 512 GB)
• Cloud Storage Supports EZVIZ Cloud Play storage

General

• IP Grade IP67
• Operating Conditions -30? ~ 50?, humidity 95% or less (non-condensing)
• Power Supply DC 12V / 1A
• Power Consumption MAX. 8W
• Dimensions 106 × 106 × 90 mm (4.17 × 4.17 × 3.54 inch) Weight 229 g (8.08 oz)

In the box

– H4 2K Camera
– Power Adapter
– Drill Template
– Screw Kit
– Regulatory Information
– Quick Start Guide
