Ezviz CS-H90

Dual-Lens Pan and Tilt Wi-Fi Camera CS-H90

Deskripsi Produk

• Image Sensor1/3″ Progressive Scan CMOS Shutter Speed Self-adaptive shutter Lens
• Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°
• Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°

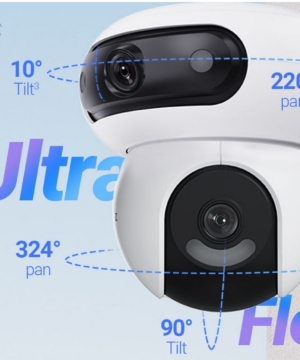

• Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle )
• Bottom Lens: Pan: 324°, Tilt: 90°
• Minimum Illumination 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
  Lens Mount M12 Day

• Night IR-cut filter with auto switch DNR3D DNRW DR Digital WDR IR Night Vision 30 m (98 ft)
• Video Compression H.265 / H.264H.265
• Type Main Profile Video Bit Rate Quad HD; Full HD; Standard adaptive bit rate Audio Bit Rate Self-Adaptive
• Wi-Fi Standard IEEE 802.11b, 802.11g, 802.11n
• Frequency Range 2.4 GHz ~ 2.4835 GHz Channel
• Bandwidth Supports 20MHz Security WPA-PSK/WPA2-PSK
• Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
• Wi-Fi Pairing AP paring Protocol EZVIZ cloud proprietary protocol
• Interface Protocol EZVIZ cloud proprietary protocol
• Wired Network RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
• AI-powered human shape detection
• AI-powered vehicle shape detection
• Motion detection
• Auto Tracking Supports Customized Alert Area Supports Two-way Talk Supports Preset Locations Supports
• General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

• Local Storage Supports microSD card (max. 512 GB)
• Cloud Storage Supports EZVIZ Cloud Play storage (subscription required)

• Operating Conditions -30°C to 50°C ( -22 °F to 122 °F )
• Humidity 95% or less (non-condensing)
• IP Grade Weather proof Design
• Power SupplyIP65 + 2h rain storm
• Power Consumption MAX. 18W
• Dimensions 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch)
• Packaging Dimensions255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch)Weight
• Net weight: 723 g (25.51 oz)
• With Package: 1203 g (42.43 oz)
