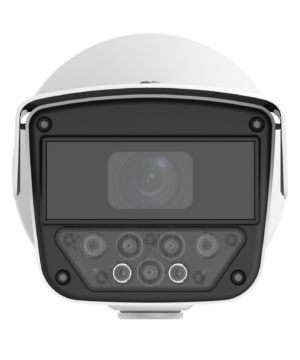

UNIVIEW PKC2640@Z80-P

Camera

• Sensor 1/1.8-inch 4MP CMOS
• Focal length 8 to 32mm
• Shutter Auto/Manual, range: 1/30 to 1/100000s
• Minimum illumination 0.002lux (F1.7)
• FOV Horizontal FOV: 42.4° to 15.9°, Vertical FOV: 23.9° to 9.8°, Diagonal FOV: 52.5° to 17.8°WDR 120 dBImage
• Image collection format 2688*1520@30 (default), 2688*1520@25
• Resolution Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF
• Frame rate 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1/li>
• Video compression H.264 (default), H.265
• ROI Supports up to 8 regions
• Image OSD Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allow list, image authentication ID, custom contents (3 items), location Smart Application scenario ≤ 80km/h for regular roads; Camera with the focal length of 8 to 32mm can be used for regular roads
• Vehicle detection mode Supports video detection, License plate number recognition Supports recognition of license plates with numbers and letters by default, List configuration Supports allowlist and blocklist configuration, each list allows 20,000 items
• Supports import, export, add, and delete operations
• Barrier opening policy Open barrier only for the recognized vehicles, Open barrier for all vehicles, Open barrier only for vehicles on the allowlist, Open barrier for vehicles not on the blocklist, Configurable Boolean output ID

Storage

• Edge storage Supports ANR with a Micro SD card, up to 256GB Structure
• Bracket 3-axis mounting bracket
• Junction box The camera comes with a junction box for storing tail cable

Network

• Protocols IGMP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH,I Pv4
• Compatible Integration ONVIF (Profile S, Profile G, Profile T),SDK, API Interface
• Network interface 1×10M/100M RJ45
• Serial port 1 × RS485
• Boolean output 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
• Boolean input 2 x input, supports level (up to DC 5V) and switch signal
• Audio interface 1 × audio input, 1 × audio output
• Storage interface 1 × Micro SD card slot
• BNC PAL,NTSC
• Reset button Support

General

• Power supply DC12V + 25% – 10%, Max. power consumption: 20W, Supports PoE (802.3at, class 4)
• Dimensions (L×W×H) 406mm x 126mm x 130mm
• Weight 2.1kg
• Operating environment -40℃ to 60℃, ≤90% RH
• Ingress protection IP67, IK10
