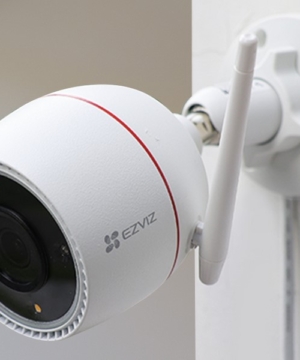

Ezviz CS-H3C(5MP)

Wi-Fi Smart Home Camera-CS-H3C(5MP)

Deskripsi Produk
ModelCS-H3c-R100-1K2WF

Camera

• Image Sensor1/2.7”Progressive Scan CMOS
• Minimum Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• IR Night Vision DistanceUp to 98 ft / 30 m
• Shutter SpeedSelf-adaptive shutter
• Lens 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)
• Lens Mount M12 DNR 3D DNR WDR Digital WDR Day / Night
• Switch IR-Cut filter with auto-switching

Video & Audio

• Max. Resolution 1080p, 1920 × 1080
• Frame Rate Max: 30fps; Self-Adaptive during network transmission
• Video Compression H.265 / H.264
• Video Bit Rate Full HD; HD; Standard. Adaptive bit rate.
• Audio Bit RateSelf-AdaptiveMax. Bitrate 2 Mbps

Network

• Wi-Fi Standard IEEE 802.11b, 802.11g, 802.11n
• Frequency Range2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
• Transmission Rate11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
• Wi-Fi Pairing AP Pairing
• Protocol EZVIZ Cloud Proprietary
• Protocol Interface Protoco lEZVIZ Cloud Proprietary
• Protocol Wired NetworkRJ45 × 1 (10M / 100M Adaptive Ethernet Port)

General

• Dimensions 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)
• Package Dimensions 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
• Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz)
• IP Grade IP67
• Operating Conditions -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
• Function Detection AI-Powered Human Shape Detection, Motion Detection Customized Alert Area Supports Integration Works with Alexa, Google Assistant, IFTTT
• General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage

• Local Storage Supports microSD card (Up to 512 GB)
• Cloud Storage Supports EZVIZ Cloud Play storage (Subscription required)

Power

• Power Supply DC 12V / 1A
• Power Consumption Max. 6W

In the box

– H3c Camera
– Drill Template
– Screw Kit
– Waterproof Kit
– Power Adapter
– Regulatory Information
– Quick Start Guide
