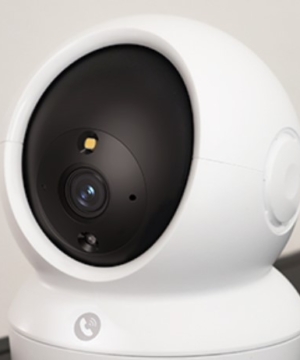

Ezviz CS-H6C(3MP)

Pan dan Tilt Smart Home Camera CS-H6C(3MP)

Deskripsi Produk
Model CS-H6c-R105-1J5WF
Camera

• Camera Resolution 3K Resolution Image Sensor 1/2.7″ Progressive Scan CMOS
• Shutter Speed Self-adaptive shutter Lens 4mm @ F1.6, viewing angle: 87° (Horizontal), 53° (Vertical), 104° (Diagonal)
• Lens Mount M12 Day & Night IR-cut filter with auto-switching DNR 3D DNR WDR Digital WDR
• Compression Video Compression H.264/H.265
• Video Bit Rate Adaptive bit rate. Image Max. Resolution 2880 × 1620

Network

• Network Smart Alarm Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection Wi-Fi
• Pairing AP paring Protocol EZVIZ cloud proprietary protocol Interface
• Protocol EZVIZ cloud

Storage

• Proprietary protocol Interface Storage Micro SD card slot (Max. 512G)

General

• Power TYPE-C Wired
• Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
• Wi-Fi Standard IEEE802.11a, 802.11b, 802.11g, 802.11n Frequency Range 2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz
• Channel Bandwidth Supports 20MHz
• Security WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7 Output Power(EIRP) 19 dBm Antenna Gain 1.9 dBi
• General Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
• Power Supply DC 5V/2A
• Power Consumption 8W max
• IR Range MAX. 10 meters(32.81ft)
• Dimensions 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
• Packaging Dimensions 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) Bare Weight 213 g (0.47 lb)

In the box
– Camera
– Power Adapter
– Power Cable
– Drill Template
– Mounting Plate
– EZVIZ Screw Kit
– Regulatory Information
– Quick Start Guide
