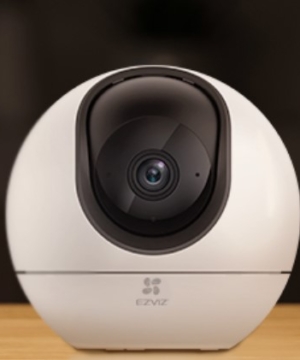

Ezviz CS-H6

5MP Smart Wi-Fi Pan&Tilt Camera

Deskripsi Produk
ModelCS-H6-R100-1J5WF
Camera

• Image Sensor1/2.7″ Progressive Scan CMOS
• Shutter SpeedSelf-adaptive shutter
• Lens4mm@ F1.6, view angle:87° (Horizontal), 53° (Vertical), 104°(Diagonal)
• PT AnglePan: 353° , Tilt: 133°
• Minimum Illumination0.51Lux @(F1.6, AGC ON), 0 Lux with IR
• Lens MountM12
• Day & NightIR-cut filter with auto-switching
• DNR3D DNR
• WDRDigital WDR
• BLCSupports
• Night Vision10 m

Video & Audio

• Max. Resolution2880 × 1620
• Frame RateMax:25fps; Self-Adaptive during network transmission
• Video CompressionH.265 / H.264
• Video Bit RateUltra-HD; HD; Standard. Adaptive bit rate.
• Audio Bit RateSelf-Adaptive
• Max. Bitrate4 Mbps

Network

• Wi-Fi StandardIEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
• Frequency Range2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz?5735~5835 MHz
• Channel BandwidthSupports 40 MHz
• Security64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
• Transmission Rate11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7
• Wi-Fi PairingAP pairing
• ProtocolEZVIZ Cloud Proprietary Protocol
• Interface ProtocolEZVIZ Cloud Proprietary Protocol
• Wired NetworkRJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Storage

• • Local StorageMicro SD card slot (Max. 512G)
  • Cloud StorageEZVIZ Cloud Storage

Function

• Smart AlarmAI-Powered Human Shape Detection / Pet Detection / Waving-Hand Detection / Voice Activity Detection
• Customized Alert AreaSupports
• Two-Way TalkSupports ( Double Mic )
• General FunctionAnti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

General

• Operating Conditions-10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing)
• Power SupplyDC 5V/2A?Type-C)
• Power ConsumptionMax. 8W
• Product Dimensions115.5 × 116 × 160 mm (4.55 × 4.57 × 6.30 inch)
• Packaging Dimensions116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch)
• Weight (With Package)487 g (17.18 oz)
• Net Weight255 g (8.99 oz)

In the box
– H6 Camera
– Base
– Power Cable
– Power Adapter
– Drill Template
– Screw Kit
– Quick Start Guide
– Regulatory Information
