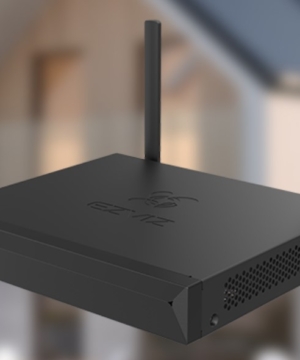

Ezviz X5S-4W

4CH NVR Wireles X5S-4W

Deskripsi Produk

• Model CS-X5S-R100-4W IPC
• Access Capability Wireless/Wired IPC Access Capability 3K *4/3K *8
• Wired IPC Access Capability 3K *4 (X5S-4W) / 3K *8 (X5S-8W)
• Network Parameters Antenna Number 2 Max Wireless Range 100m Radio Frequency 2.4G
• Ethernet Port One 10/100M adaptable
• Ethernet interface Required Access Bandwidth 50 Mbps/100 Mbps

Video Output

• VGA 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz
• HDMI 1 channel resolution up to 2592*1944/30HZ

Audio/Video

• Codec Recording Resolution 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
• Video Encoding H.265, H.264 Decode Playback Supports 4*3K/Supports 8*3K
• Video Recording Management Video Recording Mode Manual video recording;
• Motion detection recording, Scheduled video recording, Event triggered recording Backup Mode Hard disk backup, Internet application backup
• Playback Mode: Instant playback, Normal playback, Event playback, Tag playback, Log event playback
• Open Protocol Open Protocol Support HIKVISION, ONVIF (V.2.5)
• HDD Interface Type One built-in SATA port Capability Supports 1TB to 8TB 3.5-inch HDD External
• Interface Audio Input/ Output Not support Hardware Reset Supports USB2.0 Interface 2

Dimensions
Product Dimensions 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)
Packaging Dimensions 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)

Power Supply
DC 12V/1.5A
Consumption Standby status ?8W

Weight Net Weight 932 g

In the box In the box
– X5S NVR × 1
– Power Adapter × 1
– Mouse × 1
– Screw Kit × 1
– Regulatory Information × 2
– Quick Start Guide × 1
