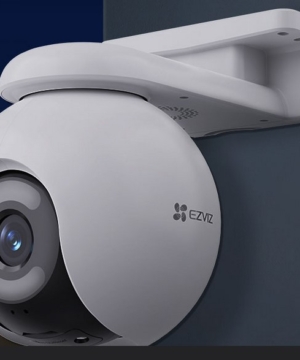

Ezviz CS-H8X

Smart Home Camera Outdoor PT Camera CS-H8X

Deskripsi Produk
Model CS-H8x-R100-8H4WKFL
Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Shutter Speed Self-adaptive shutter
• Lens 4mm @ F1.0 Field of view: 48° (vertical), 92° (horizontal), 108° (diagonal)
• PT Angle Pan: 340° , Tilt: 70° Minimum Illumination0.01 Lux @ (F1.0, AGC ON) (*data is obtained from EZVIZ laboratories)
• Lens Mount M12 DNR3D DNR WDR Digital WDRBLC
• Supports Video & Audio Max. Resolution2K+ (2560 × 1440)
• Frame Rate Self-adaptive during network transmission
• Video Compression H.265 / H.264 H.265
• Type Main profile
• Video Bit Rate Quad HD; Full HD; HD Adaptive bit rate
• Audio Bit RateSelf-Adaptive

Network

• Wi-Fi Standard IEEE 802.11b, 802.11g, 802.11n
• Frequency Range 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Supports 20 MHz
• Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, WPS
• Transmission Rate11b: 11 Mbps, 11g :54 Mbps, 11n :150 Mbps
• Wi-Fi Pairing AP pairing
• Protocol EZVIZ Cloud Proprietary Protocol
• Interface Protocol EZVIZ Cloud Proprietary Protocol
• Wired NetworkRJ45 × 1 (10M / 100M Adaptive Ethernet Port)
• Function Smart Alarm
  AI-powered human shape detection
  AI-powered vehicle shape detection
  Customized Alert Area Supports
• Two-Way Talk Supports
• Auto Zoom Tracking Supports
• General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

• Local Storage Supports microSD card (max. 512 GB)
• Cloud Storage Supports EZVIZ Cloud Play storage (subscription required)

General

• Operating Conditions -30ºC ~ 50ºC
• Humidity 95% or less ( non-condensing)
• IP GradeIP65 + 2 h rainstorm
• Power Supply DC 12 V / 1 A
• Power Consumption Max. 12W
• Dimensions 167 × 112 × 154 mm (6.57 × 4.41 × 6.06 inch)
• Packaging Dimensions 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)
• Weight Product: 607 g (21.4 oz)
• With package: 1003 g (35.4 oz)
