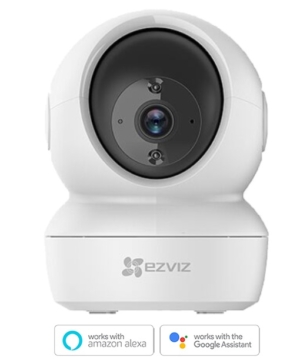

4MP Smart Wi-Fi Pan dan Tilt Camera CS-C6N(4MP)

Deskripsi Produk
Model CS-C6N-D0-8B4WF

Camera
Image sensor F2.2@1/3″ Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm, view angle: 88°(Diagonal), 75° (Horizontal), 41°(Vertical)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR

Compression
Video Compression H.265 / H.264
Video Bit Rate Quad HD; Full HD; HD; Standard. Adaptive bit rate.

Max. Resolution 2560 × 1440
Frame Rate Max. 20 fps; Self-Adaptive during network transmission

Network
Smart Alarm Motion detection
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol

Interface
Storage Micro SD card slot (Max. 256G)
Power Micro USB
Wired Network RJ45 × 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps

General
Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply DC 5V/2A
Power Consumption Max. 5W
IR Range Max. 10 m (32.81 ft)
Dimensions 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch)
Packaging Dimensions 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 inch)
Bare Weight 252g (8.89 oz)
